Percussion Press – Pneumatic

Percussion Press – Integrator

£900.00 – £3,105.00

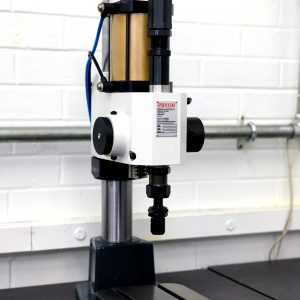

Integrator Presses are compact and versatile, and the ideal solution for fitting into automated production lines and machines. The flange mounting design has the benefit of a removable hand lever for manual operation, if required, plus the air cylinder to actuate the ram.

  • Pneumatically Operated Impact Press via a foot switch (supplied)
  • The ram design consists of a co-axial module and provides the maximum power in the smallest space.
  • The unit can be mounted in any direction using the four mounting holes.
  • Securely fix to a supporting structure in relation to the item to be marked.
SKU: PERCP-I Category:
Clear

Product Information

Increase Operator Safety

A Pryor Manual Percussion Press is ideal for medium output and helps to reduce the worker exhaustion that can be associated with hand and hammer marking tools and their operation. Presses are easy and safe to use on either regular or irregular workpieces. Bench-mounted presses have a large T-slotted worktable to enable easy fitting of work holding fixtures

Manual Percussion Press Information

Marking Capacity 0 – 600Kg 0 – 3500 Kg 0 – 7500Kg
Weight 2Kg 10Kg 38Kg
Air Pressure 4 bars 6 bars 6 bars
Air Consumption 0.5L 2.3L 5.4L
Shank HMS080 8mm dia. x 32mm HMS100 10mm dia. x 40mm HMS160 16mm dia. x 50mm
Rack Stroke Length 32mm 67mm 110mm
Tool Support Stroke Length 8mm 18mm 25mm
Usable Stroke length 24mm 49mm 85mm

Safety Information

Please note, An Integrator Impact Press is supplied unguarded and it is the responsibility of the end user to supply and fit guarding to conform to the Health & Safety At Work Act. However, we will need a Letter of Intent stating that guarding will be fitted by the end user to conform to the act before we can release pneumatics from our factory.

During installation, the operator must ensure the unit is not subjected to vibration or movement.

Indent marking pressure

Important note:

This information relates to indent marking using engraved tooling. Marking pressures and indenting depths mostly depend upon the substrate hardness; these figures the substrate is assumed to be a typical mild steel.

Calculation:

200 Kg is required for each millimetre of character height, in order to mark mild steel to a depth of 0.1 mm. Eg a single 1 mm character requires 200 Kg. A single 2mm character requires 400 Kg. Five 3mm characters requires 3000 Kg.

Quantity of character
Character Height (mm) 1 2 3 4 5 6 7 8 9 10 11 12
1.0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
1.5 300 600 900 1200 1500 1800 2100 2400 2700 3000 3300 3600
2.0 400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800
2.5 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
3.0 600 1200 1800 2400 3000 3600 4200 4800 5400 6000 6600 7200
4.0 800 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 9600
5.0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
6.0 1200 2400 3600 4800 6000 7200 8400 9600 10800 12000 13200 14400
8.0 1600 3200 4800 6400 8000 9600 11200 12800 14400 16000 17600 19200
10.0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000
12.5 2500 5000 7500 10000 12500 15000 17500 20000 22500 25000 27500 30000
