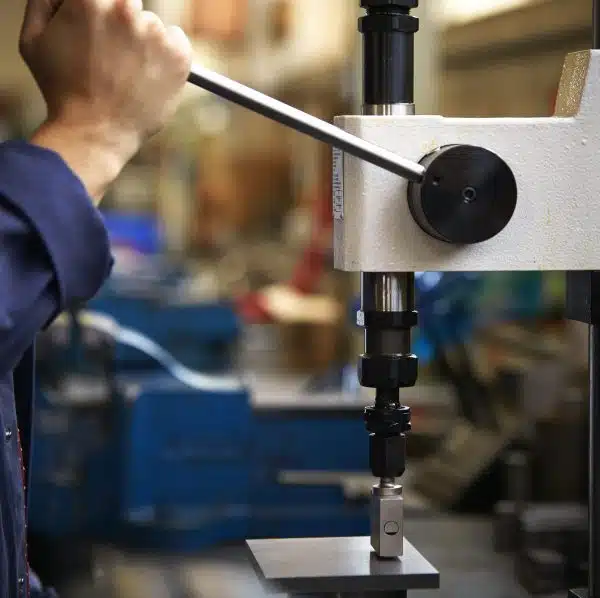

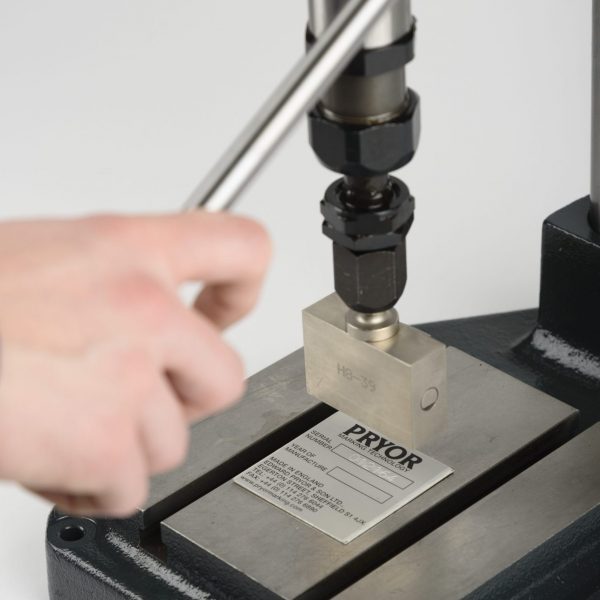

Manual Percussion Impact Presses are ideally suited for use with a Pryor Auto or Manual Number Marking Head to add automation to your serial marking process. Custom Stamps, Logo Marks, and Steel Type Stamps with a Press Holder are also commonly used with this press to mark either a fixed or completely changeable inscription. A Pryor Manual Percussion Press is ideal for medium output and helps to reduce the worker exhaustion that can be associated with hand and hammer marking tools and their operation. Presses are easy and safe to use on either regular or irregular workpieces. Bench-mounted presses have a large T-slotted worktable to enable easy fitting of work holding fixtures

  • Manually Operated Impact Press
  • Available in 3 sizes depending on your marking requirements
  • Compatible with a large number of marking products
  • T-slot base arrangement allows for flexibility with workholding fixtures
  • Marking force easily adjusted for marking different materials
  • Easy set up and use
SKU: PERCP-M Category:
Clear

Product Details

Marking capacity 0 – 500Kg 0 – 3000 Kg 0 – 6500Kg
Press Dimensions
Base Area 132 x 210 mm 205 x 309 mm 280 x 443 mm
Overall Height 450 mm 650mm 850 mm
Daylight 260 mm 430mm 390 mm
Weight 10 Kgs 33 Kgs 99Kgs
Marking Table
Area 100 x 100 mm 160 x 160mm 220 x 220 mm
T-shaped slot 6mm 8mm 12mm
Marking Stroke
Rack stroke length 30mm 60mm 100 mm
Tool support stroke length 8mm 18mm 22 mm
Usable stroke length 22mm 42mm 78 mm
Machine Shank HMS060 Round Shank 6
mm dia. x 30mm Long		 HMS100 Round Shank
10mm dia. x 40mm Long		 HMS160 Round Shank
16mm dia. x 50mm Long



Safety Information

Important note:

This information relates to indent marking using engraved tooling. Marking pressures and indenting depths mostly depend upon the substrate hardness; these figures the substrate is assumed to be a typical mild steel.

Calculation:

200 Kg is required for each millimetre of character height, in order to mark mild steel to a depth of 0.1 mm. Eg a single 1 mm character requires 200 Kg. A single 2mm character requires 400 Kg. Five 3mm characters requires 3000 Kg.

Quantity of character
Character Height (mm) 1 2 3 4 5 6 7 8 9 10 11 12
1.0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
1.5 300 600 900 1200 1500 1800 2100 2400 2700 3000 3300 3600
2.0 400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800
2.5 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
3.0 600 1200 1800 2400 3000 3600 4200 4800 5400 6000 6600 7200
4.0 800 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 9600
5.0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
6.0 1200 2400 3600 4800 6000 7200 8400 9600 10800 12000 13200 14400
8.0 1600 3200 4800 6400 8000 9600 11200 12800 14400 16000 17600 19200
10.0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000
12.5 2500 5000 7500 10000 12500 15000 17500 20000 22500 25000 27500 30000

Indent marking pressures

Important note:

This information relates to indent marking using engraved tooling. Marking pressures and indenting depths mostly depend upon the substrate hardness; these figures the substrate is assumed to be a typical mild steel.

Calculation:

200 Kg is required for each millimetre of character height, in order to mark mild steel to a depth of 0.1 mm. Eg a single 1 mm character requires 200 Kg. A single 2mm character requires 400 Kg. Five 3mm characters requires 3000 Kg.

Quantity of character
Character Height (mm) 1 2 3 4 5 6 7 8 9 10 11 12
1.0 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400
1.5 300 600 900 1200 1500 1800 2100 2400 2700 3000 3300 3600
2.0 400 800 1200 1600 2000 2400 2800 3200 3600 4000 4400 4800
2.5 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000
3.0 600 1200 1800 2400 3000 3600 4200 4800 5400 6000 6600 7200
4.0 800 1600 2400 3200 4000 4800 5600 6400 7200 8000 8800 9600
5.0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000
6.0 1200 2400 3600 4800 6000 7200 8400 9600 10800 12000 13200 14400
8.0 1600 3200 4800 6400 8000 9600 11200 12800 14400 16000 17600 19200
10.0 2000 4000 6000 8000 10000 12000 14000 16000 18000 20000 22000 24000
12.5 2500 5000 7500 10000 12500 15000 17500 20000 22500 25000 27500 30000
